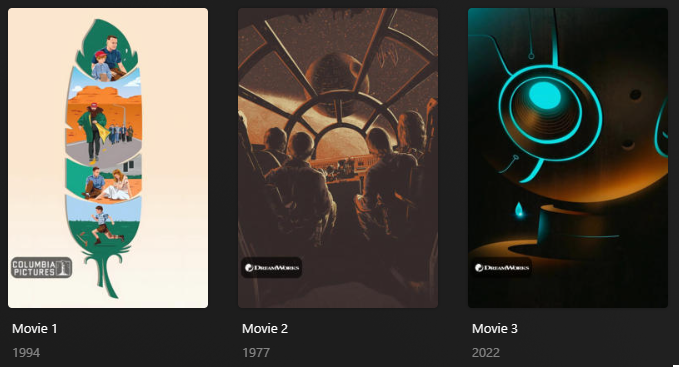

Studio Overlay¶
The studio
Default Overlay File is used to create an overlay based on the show studio on each item within your
library.
Requirements & Recommendations¶
Supported library types: Movie / Show
Bigger Style¶

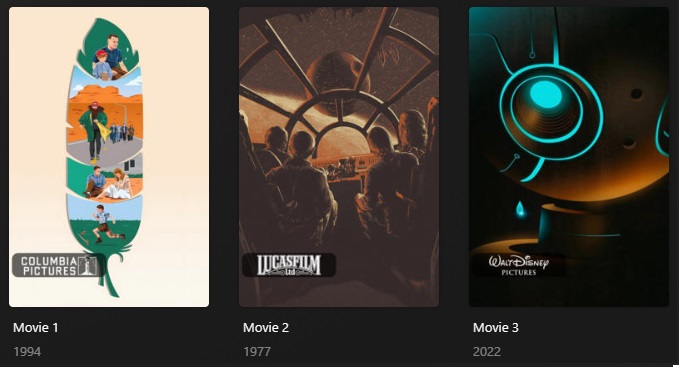

Below is a screenshot of the alternative White (bigger
) style which can be set via the style
template variable.
Config¶
The below YAML in your config.yml will create the overlays:
Template Variables¶
Template Variables can be used to manipulate the file in various ways to slightly change how it works without having to make your own local copy.
Note that the template_variables:
section only needs to be used if you do want to actually change how the defaults
work. Any value not specified will use its default value if it has one if not it's just ignored.
Variable Lists (click to expand)
-
File-Specific Template Variables are variables available specifically for this Kometa Defaults file.
-
Overlay Template Variables are additional variables shared across the Kometa Overlay Defaults.
Default Template Variable Values (click to expand)
Variable | Default |
---|---|
horizontal_offset |
15 |
horizontal_align |
left |
vertical_offset |
150 |
vertical_align |
bottom |
back_color |
#00000099 |
back_radius |
30 |
back_width |
305 |
back_height |
105 |
Variable | Description & Values |
---|---|
builder_level |
Description: Choose the Overlay Level. Values: season or episode |
style |
Description: Choose between the standard size or the bigger one. Values: bigger |
Variable | Description & Values |
---|---|
use_<<key>> 1 |
Description: Turns off individual Overlays in a Defaults file. Values: false to turn off the overlay |
file |
Description: Controls the images associated with all the Overlays to a local file. Values: Filepath to Overlay Image |
file_<<key>> 1 |
Description: Controls the image associated with this key's Overlay to a local file. Values: Filepath to Overlay Image |
url |
Description: Controls the images associated with all the Overlays to a url. Values: URL to Overlay Image |
url_<<key>> 1 |
Description: Controls the image associated with this key's Overlay to a url. Values: URL to Overlay Image |
git |
Description: Controls the images associated with all the Overlays to the git repo. Values: Git Path to Overlay Image |
git_<<key>> 1 |
Description: Controls the image associated with this key's Overlay to the git repo. Values: Git Path to Overlay Image |
repo |
Description: Controls the images associated with all the Overlays to a custom repo. Values: Repo Path to Overlay Image |
repo_<<key>> 1 |
Description: Controls the image associated with this key's Overlay to a custom repo. Values: Repo Path to Overlay Image |
horizontal_offset |
Description: Controls the Horizontal Offset of this overlay. Can be a %. Values: Number 0 or greater or 0%-100% |
horizontal_align |
Description: Controls the Horizontal Alignment of the overlay. Values: left , center , or right |
vertical_offset |
Description: Controls the Vertical Offset of this overlay. Can be a %. Values: Number 0 or greater or 0%-100% |
vertical_align |
Description: Controls the Vertical Alignment of the overlay. Values: top , center , or bottom |
back_color |
Description: Controls the Backdrop Color for the Text Overlay. Values: Color Hex Code in format #RGB , #RGBA , #RRGGBB or #RRGGBBAA AA is transparency; 00 [transparent] to FF [opaque] |
back_width |
Description: Controls the Backdrop Width for the Text Overlay. If back_width is not specified the Backdrop Sizes to the textValues: Any number greater than 0 |
back_height |
Description: Controls the Backdrop Height for the Text Overlay. If back_height is not specified the Backdrop Sizes to the textValues: Any number greater than 0 |
back_align |
Description: Controls the Alignment for the Text Overlay inside the backdrop. If back_align is not specified the Backdrop Centers the text.Values: left , right , center , top , or bottom |
back_padding |
Description: Controls the Backdrop Padding for the Text Overlay. Values: Any number greater than 0 |
back_radius |
Description: Controls the Backdrop Radius for the Text Overlay. Values: Any number greater than 0 |
back_line_color |
Description: Controls the Backdrop Line Color for the Text Overlay. Values: Color Hex Code in format #RGB , #RGBA , #RRGGBB or #RRGGBBAA``AA is transparency; 00 [transparent] to FF [opaque] |
back_line_width |
Description: Controls the Backdrop Line Width for the Text Overlay. Values: Any number greater than 0 |
- Each default overlay has a
key
that when calling to effect a specific collection you must replace<<key>>
with when calling.
Example Template Variable Amendments
The below is an example config.yml extract with some Template Variables added in to change how the file works.
libraries:
Movies:
overlay_files:
- default: studio
template_variables:
vertical_offset: 390
TV Shows:
overlay_files:
- default: studio
- default: studio
template_variables:
builder_level: season
vertical_align: bottom
vertical_offset: 15
horizontal_align: left
horizontal_offset: 15
style: bigger
- default: studio
template_variables:
builder_level: episode
vertical_align: top
vertical_offset: 15
