Resolution/Edition Overlay

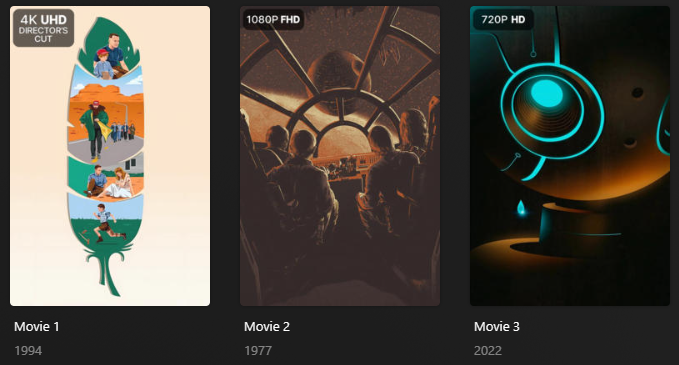

The resolution Default Overlay File is used to create an overlay based on the resolutions and editions available on each item within your library.

Requirements & Recommendations

Supported Overlay Level: Movie, Show, Episode

Recommendations: Editions overlay is designed to use the Editions field within Plex [which requires Plex Pass to use] or the TRaSH Guides filename naming scheme

Supported Resolutions

Resolution	Key	Weight
4K DV/HDR10+	4k_dvhdrplus	159
4K DV/HDR	4k_dvhdr	158
4K HDR10+	4k_plus	155
4K DV	4k_dv	150
4K HDR	4k_hdr	140
4K	4k	130
1080p DV/HDR10+	1080p_dvhdrplus	129
1080P DV/HDR	1080p_dvhdr	128
1080P HDR10+	1080p_plus	125
1080P DV	1080p_dv	120
1080P HDR	1080p_hdr	110
1080P	1080p	100
720P DV/HDR10+	720p_dvhdrplus	99
720P DV/HDR	720p_dvhdr	98
720P HDR10+	720p_plus	95
720P DV	720p_dv	90
720P HDR	720p_hdr	80
720P	720p	70
576P DV/HDR10+	576p_dvhdrplus	69
576P DV/HDR	576p_dvhdr	68
576P HDR10+	576p_plus	65
576P DV	576p_dv	60
576P HDR	576p_hdr	50
576P	576p	40
480P DV/HDR10+	480p_dvhdrplus	39
480P DV/HDR	480p_dvhdr	38
480P HDR10+	480p_plus	35
480P DV	480p_dv	30
480P HDR	480p_hdr	20
480P	480p	10
DV/HDR10+	dvhdrplus	9
DV/HDR	dvhdr	8
HDR10+	plus	7
DV	dv	5
HDR	hdr	1

Supported Editions

Edition	Key	Weight
Extended Edition	extended	190
Uncut Edition	uncut	180
Unrated Edition	unrated	170
Special Edition	special	160
Anniversary Edition	anniversary	150
Collector's Edition	collector	140
Diamond Edition	diamond	130
Platinum Edition	platinum	120
Director's Cut	directors	110
Final Cut	final	100
International Cut	international	90
Theatrical Cut	theatrical	80
Ultimate Cut	ultimate	70
Alternate Cut	alternate	60
Coda Cut	coda	50
IMAX Enhanced	enhanced	40
IMAX	imax	30
Remastered	remastered	20
Criterion	criterion	10
Richard Donner	richarddonner	9
Black and Chrome	blackchrome	8
Definitive	definitive	7
Ulysses	ulysses	6

"Dovetail" versions

In the Kometa log, you may see references to versions of these overlays with -Dovetail appended:

|                             4K-Plus-Dovetail Overlay in Movies                             |
|                              4K-DV-Dovetail Overlay in Movies                              |
|                             4K-HDR-Dovetail Overlay in Movies                              |
|                               4K-Dovetail Overlay in Movies                                |
...
|                        Extended-Edition-Dovetail Overlay in Movies                         |
|                          Uncut-Edition-Dovetail Overlay in Movies                          |
|                         Unrated-Edition-Dovetail Overlay in Movies                         |
...

These -Dovetail variations are used when resolution and edition are combined so that one "dovetails" into the other.
This is not something you can enable or disable independently; it's an internal implementation detail.

Config

The below YAML in your config.yml will create the overlays:

libraries:
  Movies:
    overlay_files:
      - default: resolution
  TV Shows:
    overlay_files:
      - default: resolution
      - default: resolution
        template_variables:
          builder_level: season
      - default: resolution
        template_variables:
          builder_level: episode

Template Variables

Template Variables can be used to manipulate the file in various ways to slightly change how it works without having to make your own local copy.

Note that the template_variables: section only needs to be used if you do want to actually change how the defaults work. Any value not specified will use its default value if it has one if not it's just ignored.

Variable Lists (click to expand)

• File-Specific Template Variables are variables available specifically for this Kometa Defaults file.

• Overlay Template Variables are additional variables shared across the Kometa Overlay Defaults.

Default Template Variable Values (click to expand)

Variable	Default
horizontal_offset	15
horizontal_align	left
vertical_offset	15
vertical_align	top
back_color	#00000099
back_radius	30
back_width	305
back_height	105/189

File-Specific Template VariablesOverlay Template Variables

Variable	Description & Values
use_resolution	Description: Turns off all Resolution Overlays in the Defaults file. Values: false to turn off the overlays
use_edition	Description: Turns off all Edition Overlays in the Defaults file. Values: false to turn off the overlays
builder_level	Description: Choose the Overlay Level. Values: season or episode
weight_<<key>>1	Description: Controls the weight of the Overlay. Higher numbers have priority. Only works with Edition keys. Values: Any Number

1. Each default overlay has a key that when calling to effect a specific overlay you must replace <<key>> with when calling.

Variable	Description & Values
use_<<key>>1	Description: Turns off individual Overlays in a Defaults file. Values: false to turn off the overlay
file	Description: Controls the images associated with all the Overlays to a local file. Values: Filepath to Overlay Image
file_<<key>>1	Description: Controls the image associated with this key's Overlay to a local file. Values: Filepath to Overlay Image
url	Description: Controls the images associated with all the Overlays to a url. Values: URL to Overlay Image
url_<<key>>1	Description: Controls the image associated with this key's Overlay to a url. Values: URL to Overlay Image
git	Description: Controls the images associated with all the Overlays to the git repo. Values: Git Path to Overlay Image
git_<<key>>1	Description: Controls the image associated with this key's Overlay to the git repo. Values: Git Path to Overlay Image
repo	Description: Controls the images associated with all the Overlays to a custom repo. Values: Repo Path to Overlay Image
repo_<<key>>1	Description: Controls the image associated with this key's Overlay to a custom repo. Values: Repo Path to Overlay Image
horizontal_offset	Description: Controls the Horizontal Offset of this overlay. Can be a %. Values: Number 0 or greater or 0%-100%
horizontal_align	Description: Controls the Horizontal Alignment of the overlay. Values: left, center, or right
vertical_offset	Description: Controls the Vertical Offset of this overlay. Can be a %. Values: Number 0 or greater or 0%-100%
vertical_align	Description: Controls the Vertical Alignment of the overlay. Values: top, center, or bottom
back_color	Description: Controls the Backdrop Color for the Text Overlay. Values: Color Hex Code in format #RGB, #RGBA, #RRGGBB or #RRGGBBAA AA is transparency; 00 [transparent] to FF [opaque]
back_width	Description: Controls the Backdrop Width for the Text Overlay. If back_width is not specified the Backdrop Sizes to the text Values: Any number greater than 0
back_height	Description: Controls the Backdrop Height for the Text Overlay. If back_height is not specified the Backdrop Sizes to the text Values: Any number greater than 0
back_align	Description: Controls the Alignment for the Text Overlay inside the backdrop. If back_align is not specified the Backdrop Centers the text. Values: left, right, center, top, or bottom
back_padding	Description: Controls the Backdrop Padding for the Text Overlay. Values: Any number greater than 0
back_radius	Description: Controls the Backdrop Radius for the Text Overlay. Values: Any number greater than 0
back_line_color	Description: Controls the Backdrop Line Color for the Text Overlay. Values: Color Hex Code in format #RGB, #RGBA, #RRGGBB or #RRGGBBAA``AA is transparency; 00 [transparent] to FF [opaque]
back_line_width	Description: Controls the Backdrop Line Width for the Text Overlay. Values: Any number greater than 0

1. Each default overlay has a key that when calling to effect a specific collection you must replace <<key>> with when calling.

Example Template Variable Amendments

The below is an example config.yml extract with some Template Variables added in to change how the file works.

libraries:
  Movies:
    overlay_files:
      - default: resolution
        template_variables:
          use_dvhdrplus: false
          use_dv: false
          use_hdr: false
          use_1080p: false
          use_720p: false
          use_576p: false
          use_480p: false
          use_1080p_hdr: false
          use_1080p_dv: false
